Products description

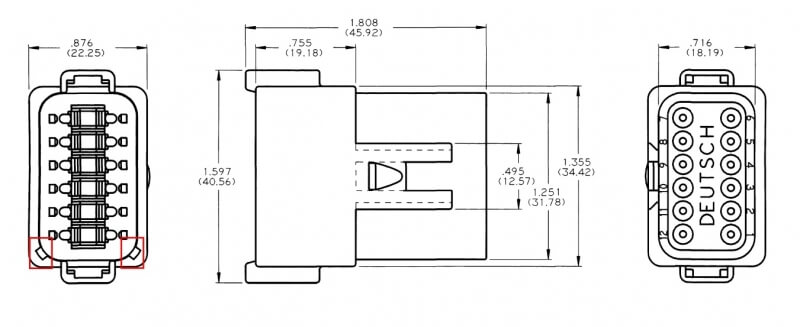

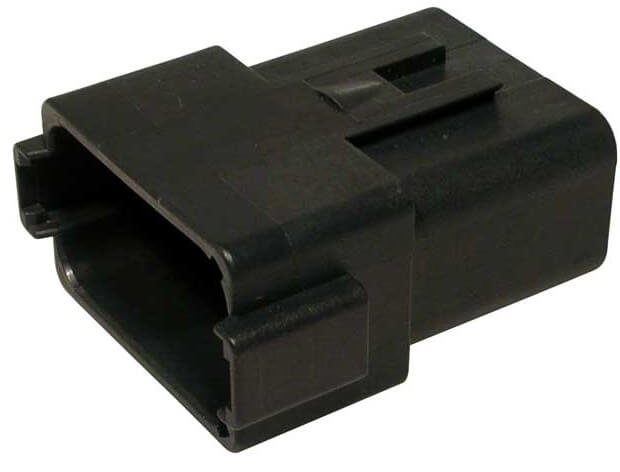

DT 04-12PB, Coding B
for wires with isolation diameter range
from 2,23 to 3,68 mm
Pin contacts and Wedgelock W12P
have to be ordered separate
IP 68
Manufacturer
Ampèrestrasse 12-14
64625 Bensheim
Germany
help@te.com
DT06-12SB, Coding B
for wires with isolation diameter range
from 2,23 to 3,68 mm
Female contacts and Wedgelock W12S
have to be ordered separate
IP 68
| Qty | Price |
| from 1 | 8,69 EUR |
| from 10 | 6,51 EUR |
| from 50 | 5,17 EUR |
The wedgelocks ensure proper contact alignment within each connector.
| Qty | Price |
| from 1 | 0,38 EUR |
| from 10 | 0,32 EUR |
| from 50 | 0,29 EUR |
| wire range: | 0,75 - 2,0 mm² |
| AWG 18 - 14 |
| Qty | Price |
| from 1 | 0,34 EUR |
| from 10 | 0,26 EUR |
| from 100 | 0,19 EUR |
| from 1000 | 0,17 EUR |
| Contact finish | Nickel plated |
| wire range: | 0,5 - 1,3 mm² |
| AWG 20 - 16 |
| Qty | Price |
| from 1 | 0,75 EUR |
| from 10 | 0,55 EUR |
| from 100 | 0,40 EUR |
| from 1000 | 0,38 EUR |
| Contact finish | Gold |
| wire range: | 0,5 - 1,3 mm² |
| AWG 20 - 16 |
| Qty | Price |
| from 1 | 1,45 EUR |
| from 10 | 1,07 EUR |
| from 100 | 0,77 EUR |
| from 1000 | 0,73 EUR |
| Contact finish | Nickel plated |
| wire range: | 2.0 mm² |
| AWG 14 |
| Qty | Price |
| from 1 | 0,80 EUR |
| from 10 | 0,59 EUR |
| from 100 | 0,42 EUR |
| from 1000 | 0,41 EUR |
| Contact finish | Gold |
| wire range: | 2.0mm² |
| AWG 14 |
| Qty | Price |
| from 1 | 2,38 EUR |
| from 10 | 1,56 EUR |
| from 100 | 1,31 EUR |
| from 1000 | 1,19 EUR |
Boot 180° for DT04-12P
Temperature rating: -29°C to +100°C
can be used for any DT04-12P... receptacles without any modification including an endcap
| Qty | Price |
| from 1 | 3,62 EUR |
| from 50 | 3,20 EUR |
| from 100 | 2,91 EUR |
made of Plastisol, black
for 12 way receptacles series DT,
can be used for any keys and any modifications
| Qty | Price |
| from 1 | 3,81 EUR |
| from 50 | 3,49 EUR |
| from 100 | 3,18 EUR |
with dovetail for mounting brackets (e.g. 1011-026-0205)
| Qty | Price |
| from 1 | 3,34 EUR |
| from 10 | 2,38 EUR |
| from 50 | 1,93 EUR |
with dovetail for mounting brackets (e.g. 1011-026-0205)
| Qty | Price |
| from 1 | 3,34 EUR |
| from 10 | 2,38 EUR |
| from 50 | 1,93 EUR |
use for housings with size 12 and size 16 contacts
white, plastic
| Qty | Price |
| from 1 | 0,16 EUR |
| from 10 | 0,13 EUR |
| from 100 | 0,12 EUR |
use for housings with size 16 contacts
Shoulder of sealing plug locks under contact retention finger in connector.
white, plastic
| Qty | Price |
| from 1 | 0,58 EUR |
| from 10 | 0,50 EUR |
| from 100 | 0,47 EUR |
used on receptacles
DT-Series 2, 3, 4, 6 and 12 poles
(except 8-pole connectors, use for 8 cavities 1011-027-0805)
DTM- and DTP-Series: all cavities
DTHD receptacles
Mounting Clip for Housings
| Qty | Price |
| from 1 | 1,49 EUR |
| from 10 | 1,35 EUR |
| from 20 | 1,29 EUR |
Mounting Clip for Housings
suitable for:
- DT04- 2P / 3P / 4P / 6P / 12P connectors of DT series
- DTM- 2P / 3P / 4P / 6P / 12P connectors of DTM series
- DTP- 2P / 4P connectors of DTP series
Deutsch Art.-No.: 1011-310-0205
| Qty | Price |
| from 1 | 2,66 EUR |
| from 10 | 2,35 EUR |
| from 20 | 2,26 EUR |
Mounting Clip for Housings
suitable for:
- DT04- 2P / 3P / 4P / 6P / 12P connectors of DT series
- DTHD04- 2P / 3P / 4P / 6P / 12P connectors of DTHD series
- DTM- 2P / 3P / 4P / 6P / 12P connectors of DTM series
- DTP- 2P / 4P connectors of DTP series
- DTHD Receptacle Housings
| Qty | Price |
| from 1 | 2,37 EUR |
| from 10 | 2,18 EUR |
| from 20 | 2,00 EUR |
use for solid contacts 0,35 - 4,0mm², AWG 22-12
sizes: 12, 16 and 20,
of following series:
- HD30, HDP20, DRC, HD10 ,
- DT, DTM, DTP,
- DTHD, DRB, DTV,
- AEC, STRIKE, Jiffy Splice
crimping tool with four ident crimping
| Qty | Price |
| from 1 | 395,85 EUR |
| from 5 | 380,63 EUR |
| from 10 | 365,40 EUR |
Field Maintanance Crimp Tool
use for Series DT, DTM und DTP, sizes 20, 16 and 12
This tool crimps a "U" crimp for field repair ONLY!
Not to be used for O.E.M crimping!
for wires 0.75 - 1.0 mm², AWG 18-16 with
insulation diameter range 2,23 - 3,40mm [.088-.134"]
| Qty | Price |
| from 1 | 2,85 EUR |
| from 10 | 2,59 EUR |
extraction tool for wedgelocks
suitable for DT Series, DTM Series, DTP Series, DRB Series, DTV Series, STRIKE Series
