Female Solar Panel Receptacle MC 4 (4 - 6 mm²)

Female Solar Panel Receptacle MC 4 (4 - 6 mm²)

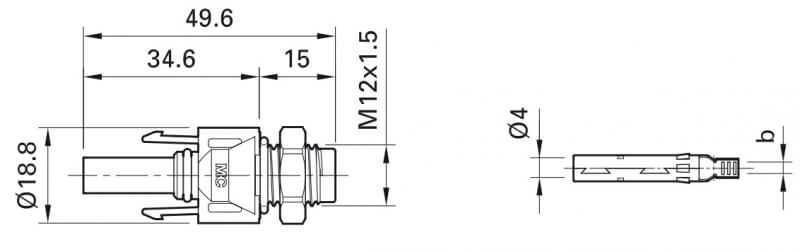

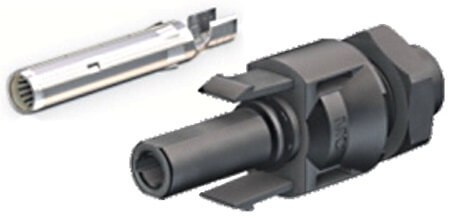

For a larger view click on the thumbnail
Product no.: PV-ADBP4-S2-UR/6
Shipping time: 2-4 days
Manufacturer: Multi-Contact
More products of: Multi-Contact
from 1 pcs.per 3,77 EUR
from 50 pcs.per 3,68 EUR
from 100 pcs.per 3,62 EUR
0 % VAT plus. excl. Shipping costs
Add to cart

  • Details
  • More images

Products description

Article only for private customers: 0% VAT!


Multi-Contact Solar Couplers Male MC4
Female Solar Panel Receptacle housing inclusive female contact
Rated Current IEC (90°) 30 A at 6,0mm²,  AWG10
Rated Voltage 1000VDC (IEC)
Ambient Temperature Range -40°C to +90°C (IEC)
Degree of protection, mated: IP67
Multi-Contact item number 32.0078P0001-UR

  • MC4 panel-receptacle connectors are the interface between an inverter or junction box or junction and a branch cable
  • Mounting directly by means of screw thread or in perforated plate with locknut (included in delivery)
  • Rapid, precise plugging
  • Protection class IP67 guarantees the highest connection safety
  • Mating compatibility with MC4
