DTMH06-3SA

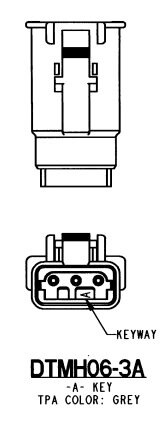

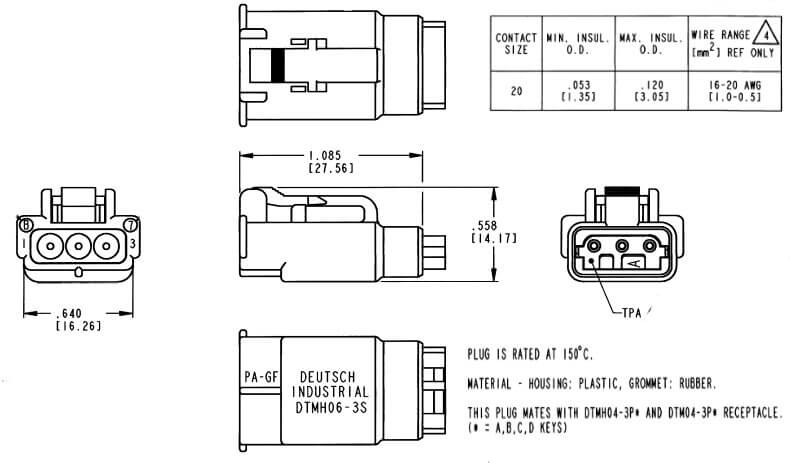

DEUTSCH Plug Housing 3-pole DTMH-Series, coding A

DEUTSCH Plug Housing 3-pole DTMH-Series, coding A
For a larger view click on the thumbnail
Product no.: DTMH06-3SA
Shipping time: 2-3 days
QtyPrice
from 1 pcs.per 1,65 EUR
from 10 pcs.per 1,34 EUR
from 50 pcs.per 1,21 EUR
16 % VAT plus. excl. Shipping costs
Add to cart



  • Details
  • More images
  • mating parts
  • contacts
  • tools

Products description

for wires with isolation diameter range from
1.35 up to 3.05 mm [.053 - .120 in.]
includes pre-monted terminal position assurance (TPA) WMH-3SA
operation temperature range -55°C to -150°C
Pin contacts have to be ordered separate
IP 67


DEUTSCH Receptacle Housing 3-pole DTMH-Series, coding A

for wires with isolation diameter range from
1.35 up to 3.05 mm [.053 - .120 in.]
includes pre-monted terminal position assurance (TPA) WMH-3PA
operation temperature range -55°C to -150°C
Pin contacts have to be ordered separate
IP 67

Shipping time: 2-3 days
QtyPrice
from 1 2,40 EUR
from 10 2,00 EUR
from 50 1,76 EUR
16 % VAT plus. excl. Shipping costs

DEUTSCH Female Contact Size 20 stamped & formed 0,35 - 1,5 mm², Ni



wire range:0,35 - 1,35 mm²
AWG 22 - 16
plating:nickel
Shipping time: 2-3 days
QtyPrice
from 1 0,29 EUR
from 10 0,21 EUR
from 100 0,15 EUR
from 1000 0,14 EUR
16 % VAT plus. excl. Shipping costs

DEUTSCH Female Contact Size 20 turned (solid) 0,5mm², Ni



Contact finishNickel plated
wire range:0,5 mm²
AWG 20
Shipping time: 2-3 days
QtyPrice
from 1 0,61 EUR
from 10 0,43 EUR
from 100 0,31 EUR
from 1000 0,30 EUR
16 % VAT plus. excl. Shipping costs

DEUTSCH Female Contact Size 20 turned (solid) 0,75-1,3mm², Ni



Contact finishNickel plated
wire range:0,75 - 1,3 mm²
AWG 18-16
Shipping time: 2-3 days
QtyPrice
from 1 2,47 EUR
from 10 1,74 EUR
from 100 1,27 EUR
from 1000 1,20 EUR
16 % VAT plus. excl. Shipping costs

DEUTSCH Female Contact Size 20 turned (solid) 0,5mm², Au



Contact finishGold
wire range:0,5 mm²
AWG 20
Shipping time: 2-3 days
QtyPrice
from 1 1,09 EUR
from 10 0,77 EUR
from 100 0,56 EUR
from 1000 0,53 EUR
16 % VAT plus. excl. Shipping costs

DEUTSCH Female Contact Size 20 turned (solid) 0,75-1,3mm², Au



Contact finishGold
wire range:0,75 - 1,3 mm²
AWG 18-16
Shipping time: 2-3 days
QtyPrice
from 1 4,63 EUR
from 10 3,26 EUR
from 100 2,38 EUR
from 1000 2,25 EUR
16 % VAT plus. excl. Shipping costs

Deutsch Hand-Crimping Tool for stamped & formed Contacts Size 20

suitable for Contacts of following series DTM
DTMSKS + DTMBKS
0,5 - 1,5mm², AWG20-16

Shipping time: 2-3 days
331,50 EUR
16 % VAT plus. excl. Shipping costs

Deutsch Hand-Crimping Tool for turned (solid) Contacts

use for solid contacts 0,35 - 4,0mm², AWG 22-12
sizes: 12, 16 and 20,
of following series:

  • HD30, HDP20, DRC, HD10 ,
  • DT, DTM, DTP,
  • DTHD, DRB, DTV,
  • AEC, STRIKE, Jiffy Splice

crimping tool with four ident crimping

Shipping time: 2-3 days
QtyPrice
from 1 261,24 EUR
from 5 242,58 EUR
from 10 233,25 EUR
16 % VAT plus. excl. Shipping costs

Deutsch Hand-Crimping Tool for turned (solid) Contacts

Field Maintanance Crimp Tool
use for Series DT, DTM und DTP, sizes 20, 16 and 12

This tool crimps a "U" crimp for field repair ONLY!
Not to be used for O.E.M crimping!



Shipping time: 2-3 days
237,00 EUR
16 % VAT plus. excl. Shipping costs

Extraction Tool for Size 20 Contacts red

for wires 0.35 - 1.0 mm², AWG 22-16 with
2,41 mm [.095 in.] maximum insulation diameter

Shipping time: 2-3 days
QtyPrice
from 1 1,60 EUR
from 10 1,44 EUR
16 % VAT plus. excl. Shipping costs
