99-9113-00-05

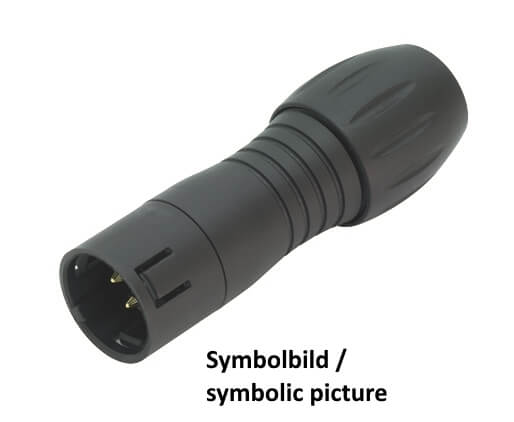

Binder Male Cable Connector Series 720 5-pin

Binder Male Cable Connector Series 720 5-pin
For a larger view click on the thumbnail
Product no.: 99-9113-00-05
Shipping time: 2-4 days
Manufacturer: Binder
More products of: Binder
QtyPrice
from 1 pcs.per 5,98 EUR
from 20 pcs.per 5,45 EUR
from 50 pcs.per 4,96 EUR
19 % VAT plus. excl. Shipping costs
Add to cart



  • Details
  • More images
  • mating parts
  • caps

Products description

LockSnap-In
Connection Typesolder
Wire Rangemax. 0,75 mm
Cable Entry4-6 mm

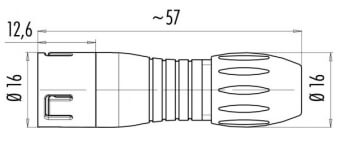

Lenght57 mm
Diameter16 mm
ProtectionIP 67
Temperature Range-40C bis +85C
Plug Cycles500
Current Voltage125 V
Rated Current5 A
CertificationVDE

Binder Female Cable Connector Series 720 5-pin
LockSnap-In
Connection Typesolder
Wire Rangemax. 0,75 mm
Cable Entry4-6 mm
Lenght57 mm
Diameter16 mm
ProtectionIP 67
Temperature Range-40C bis +85C
Plug Cycles500
Current Voltage125 V
Rated Current5 A
CertificationVDE
Shipping time: 2-4 days
QtyPrice
from 1 7,55 EUR
from 20 6,96 EUR
from 50 6,29 EUR
19 % VAT plus. excl. Shipping costs

Binder Female Flange Connector Series 720 5-pin
LockSnap-In
Connection Typesolder
Wire Rangemax. 0,75 mm
Lenght21 mm
Diameter16 mm
ProtectionIP 67
Temperature Range-40C bis +85C
Plug Cycles500
Current Voltage125 V
Rated Current5 A
CertificationVDE
Shipping time: 2-4 days
QtyPrice
from 1 5,80 EUR
from 20 5,30 EUR
from 50 4,84 EUR
19 % VAT plus. excl. Shipping costs

Cap for Cable Connector Series 720
Protection cap for male panel mount connector
IP67
Shipping time: 2-4 days
QtyPrice
from 1 3,65 EUR
from 20 3,58 EUR
from 50 3,52 EUR
19 % VAT plus. excl. Shipping costs
